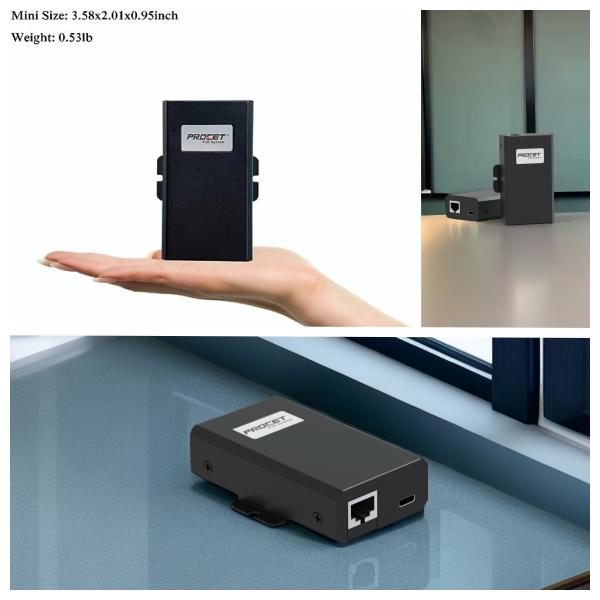

50W small size PoE injector splitter use for Macbook and Google Wifi
Product Review:
PoE injector splitter enclosed in an IP40 reflective metal case, designed to be powered from the IEEE802.3bt
PoE injector.
Product Specifications:
| Regulatory Compliance | IEEE802.3bt |
| RoHS Compliance |
| WEEE Compliance |
| Pass Through Data Rates | 10/100/1000 Mbps |
| PoE injector splitter Output | Pin Assignment and Polarity: |
| 3/6(+), 1/2(-), 4/5(+), 7/8(-) |
| Output Power Voltage: 5V-20V |
| User Port Power total:50W Guaranteen |
| Input | DC Input Voltage:44-57Vdc |
| DC Input Current: 4A |
| Mechanical Characteristics | PoE injector splitter Case: Metal |
| Color: BlackMounting |
| IP Rated: IP40 |
| Connectors: Shielded RJ-45*1,Type-C Port*1 |
| Size: 91 X 51.11 X 24.11mm |
| PoE injector splitter Weight: 142g(0.31lb) |
| LED Indicator | PoE input indicator: Green |
| Type C output indicator: Yellow |
| Warranty | 2 years |
| Safety Approvals | FCC |
Company Introduction:
PROCET(Creative Lianjie Network Technology Co.,Ltd) born in 2000. PROCET mainly R&D on the PoE
(Power over Ethernet) series product, Outdoor PoE, indoor PoE, Lightning&surge protection PoE.-40℃ to +65℃
PoE,usb c power injector, PoE extender and PoE injector splitter. We registered PROCET Technology Co., Ltd
in HONGKONG in 2019.PROCET PoE injector has been widely favored by customers since its development.
Certification:
Shipping and Payment:
| MOQ | 1PC |
| PORT | SHENZHEN |
| PAYMENT TERMS | T/T,WESTERN UNION/OTHER |
| PRODUCING CAPACITY | 500,00 Per/Month POE Module and POE Splitter,10000 Per/Month PoE injector splitter |
| LEADING TIME | SMALL quantities in stock.Large quantities 20-30 days |
| BOX | Industrial fiber PoE injector Carton packaging |
FAQ:
1.What is the PT-PTC-BT PoE injector splitter used for?
The PT-PTC-BT Type-C PoE Splitter is used to deliver power and data simultaneously to Type-C devices over an
Ethernet cable.
2.What devices are compatible with the PT-PTC-BT PoE injector splitter?
The PT-PTC-BT Type-C PoE Splitter is compatible with various Type-C devices.
3.How does the PT-PTC-BT PoE injector splitter work?
The PT-PTC-BT Type-C PoE Splitter connects to a PoE injector using an Ethernet cable.
4.What are the key features of the PT-PTC-BT PoE injector splitter?
The PT-PTC-BT Type-C PoE Splitter give efficient power delivery, simultaneous power and data transmission, compatibility
with PoE standards, and a compact and portable design.
5.Is the PT-PTC-BT PoE injector splitter convenient to set up?
Yes, the PT-PTC-BT Type-C PoE Splitter is designed for simple installation.
